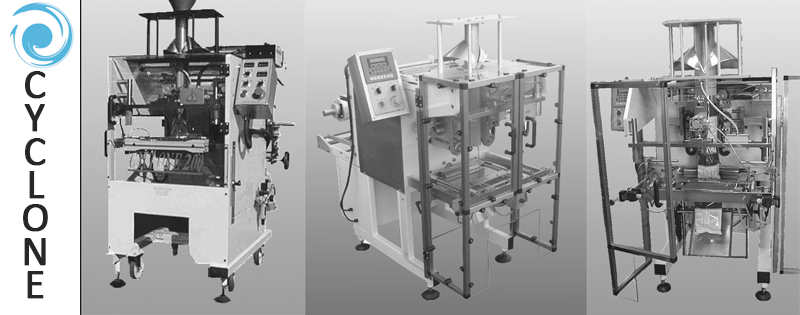

Cyclone Innovative Packaging Machines
The vertical form-fill and seal machines are hand-built by skilled, experienced packaging machine engineers. The result is an extremely reliable, efficient vertical form fill and seal machine. Maintenance and down-time are therefore kept to a minimum and this makes the machines cost-effective to own and operate. Cyclone are truly innovative packaging machines.
The machines use a PLC and operator interface unit to store settings such as pack length, sealing temperatures, timings etc. The standard machine can store up to 10 programs, but this can be increased if required. The standard vertical form fill and seal machine finish is in durable powder coating, with all product contact parts in stainless steel. If preferred the machine can be manufactured entirely from stainless steel, or other food-grade/non-corrosive materials.
The vertical form fill and seal machines can be supplied to suit all tyPAL of packaging films, including laminates, co-ex, polypropylene, and with our special sealing system polythene and soluble film.
Complete packaging systems can be supplied including suitable feeding system, multihead weighers, bucket elevator, rotary packing tables etc.

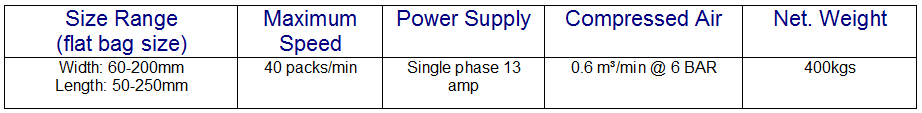

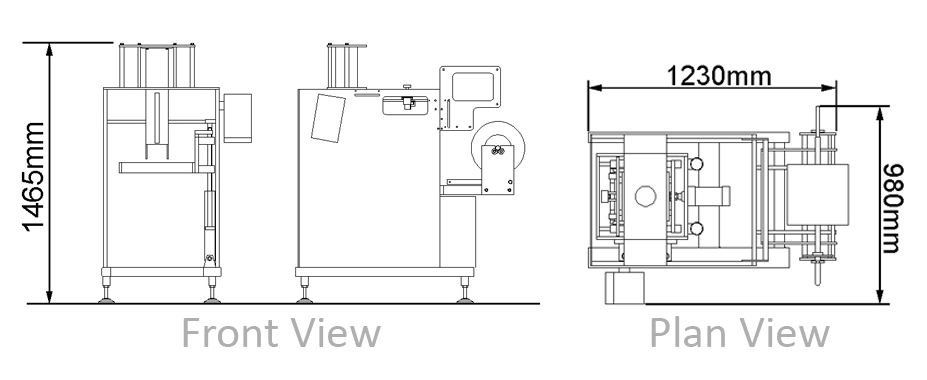

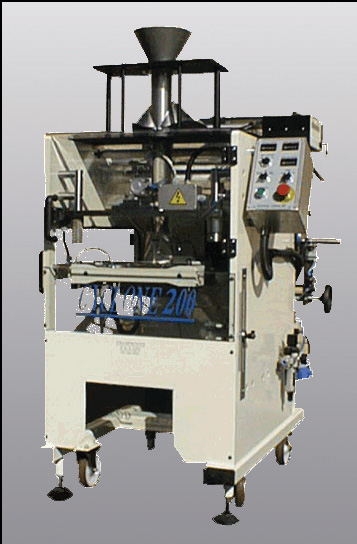

Cyclone 200
The Cyclone 200 uses a combination of pneumatics and the sealing jaw mechanism to pull the film from the reel, form the tube and pull the correct bag length. The bag length is easily adjustable throughout its range. The type of bag that can be used on this machine is the standard pillow bag, as picture on the left.

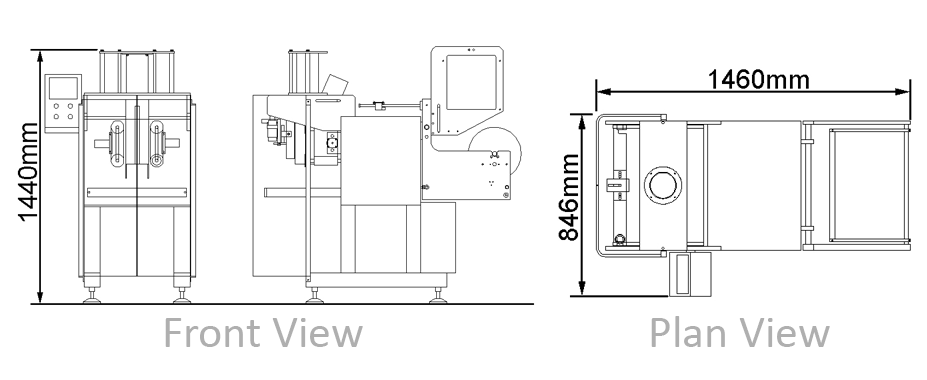

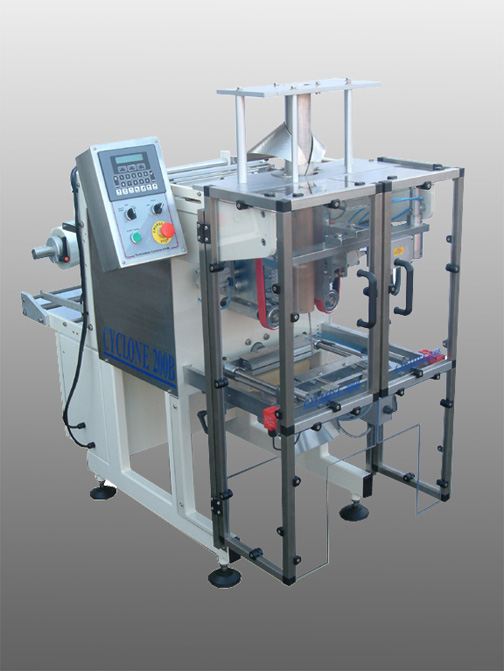

Cyclone 200B
The Cyclone 200B machine uses the blet draw-down system to pull the film from the reel. The operator can easily adjust the bag length through the interface unit. Bag length can be determined by a photocell registration mark, or by using a rotary encoder to measure the exact pack length.
As pictured on the left these are the type of bags available to use with this machine, they are: standard pillow bag, pillow bag with gusset, block bottom, and the block bottom quantum.

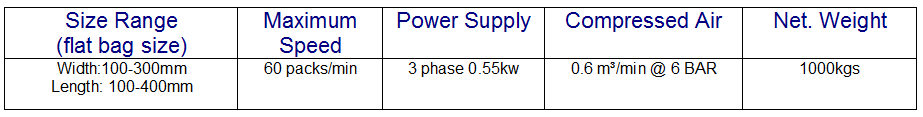

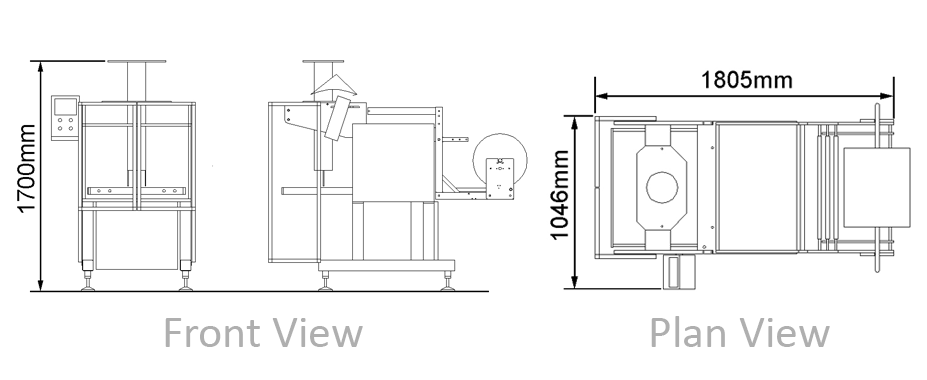

Cyclone 300
The Cyclone 300 machine uses the belt draw-down system to pull the film from the reel. The operator can easily adjust the bag length through the interface unit. Bag length can be determined by a photocell registration mark, or by using a rotary encoder to measure the exact pack length.
As pictured on the left these are the type of bags available to use with this machine, they are: standard pillow bag, pillow bag with gusset, block bottom, and the block bottom quantum.

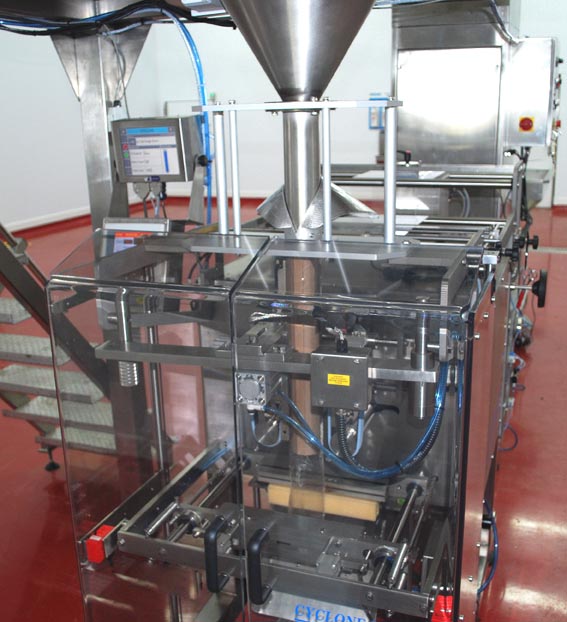

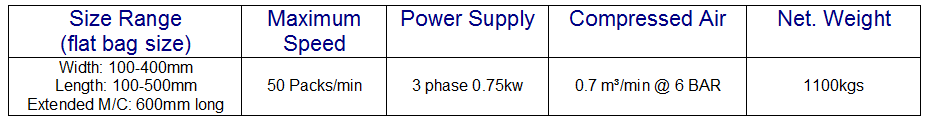

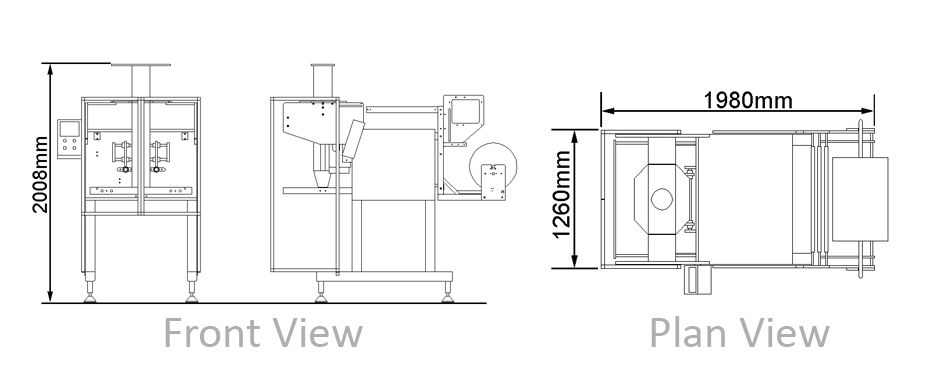

Cyclone 400
The Cyclone 400 machine uses the belt draw-down system to pull the film from the reel. The operator can easily adjust the bag length through the interface unit. Bag length can be determined by a photocell registration mark, or by using a rotary encoder to measure the exact pack length.
As pictured on the left these are the type of bags available to use with this machine, they are: standard pillow bag, pillow bag with gusset, block bottom, and the block bottom quantum.
